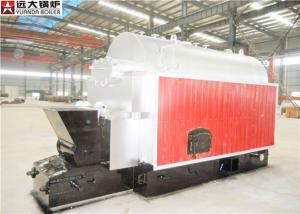

2Ton Single Drum Coal Hot Water Boiler Coal Biomass Pellet Boiler
Advantages of boiler structure
1. Design the cyclone chamber structure in furnace,high temperature flue gas through high - speed rotation, mixing combustion, dust separation, and thus achieve the effect of dust removal, energy saving and environmental protection
2. Large furnace volume,strong adaptability for coal, available for all kinds of biomass as fuel
3. Large heating surface , boost pressure quickly, sufficient output,low energy consumption

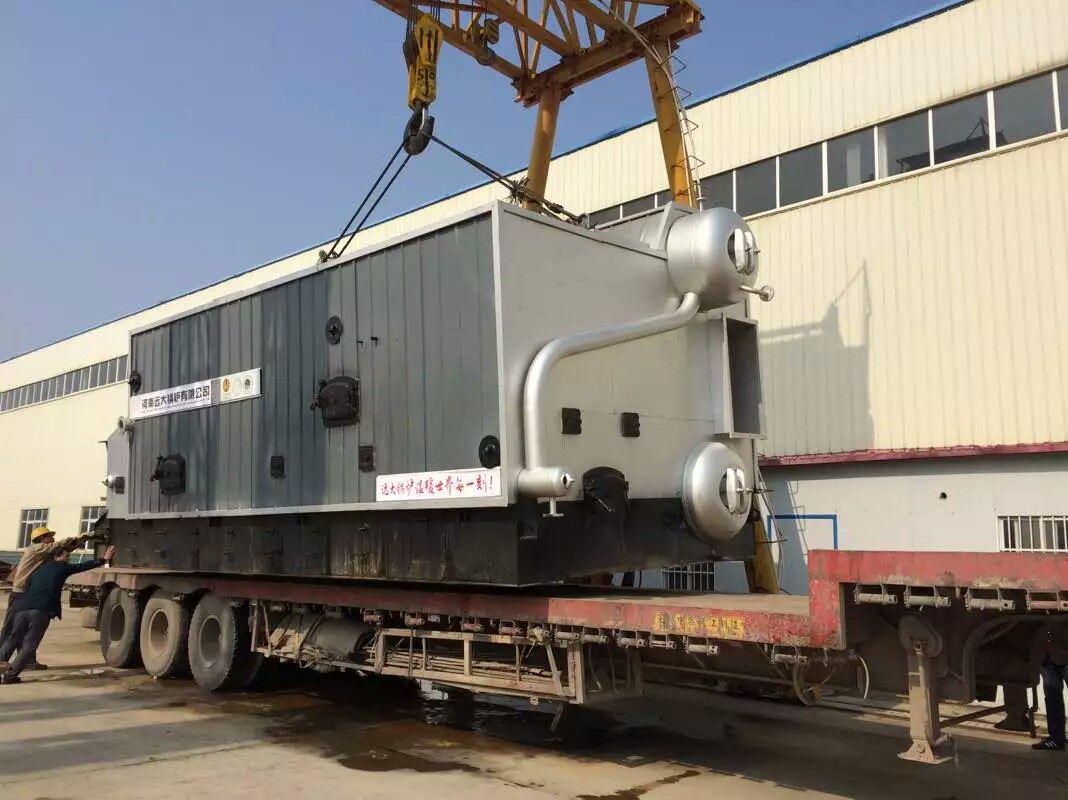

4. Fast assembly from factory, short installation time
1. The fire tube adopt screw pipe to increse the heating area to avoid the thermal expansion.
2. Slag extractor has two types: screw slag machne and scraper slag machine.
3. The feeding system has two types: automatic feeding system and manual type feeding system.
4. Feed water pump adopt stainless steel feed water pump.

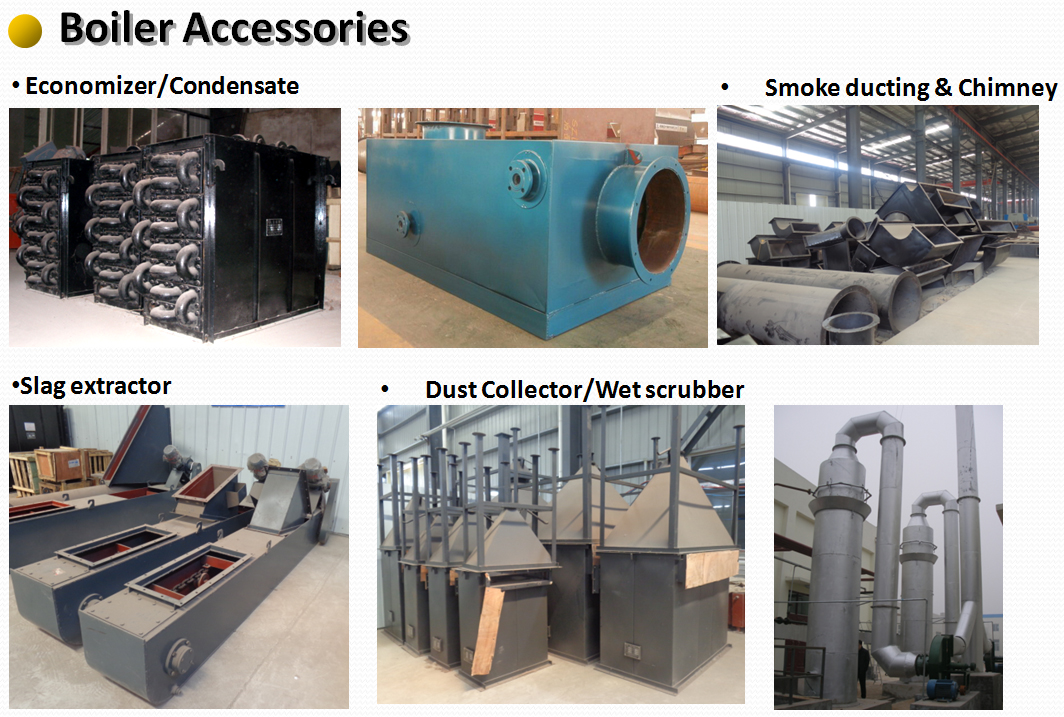

5. Economizer , can make full use of the smoke high temperature. and heat water to flow back to boiler to realize circle use.
6. Steam Manfold: in general is one inlet three outset, we also can equip according to customer's requirements.

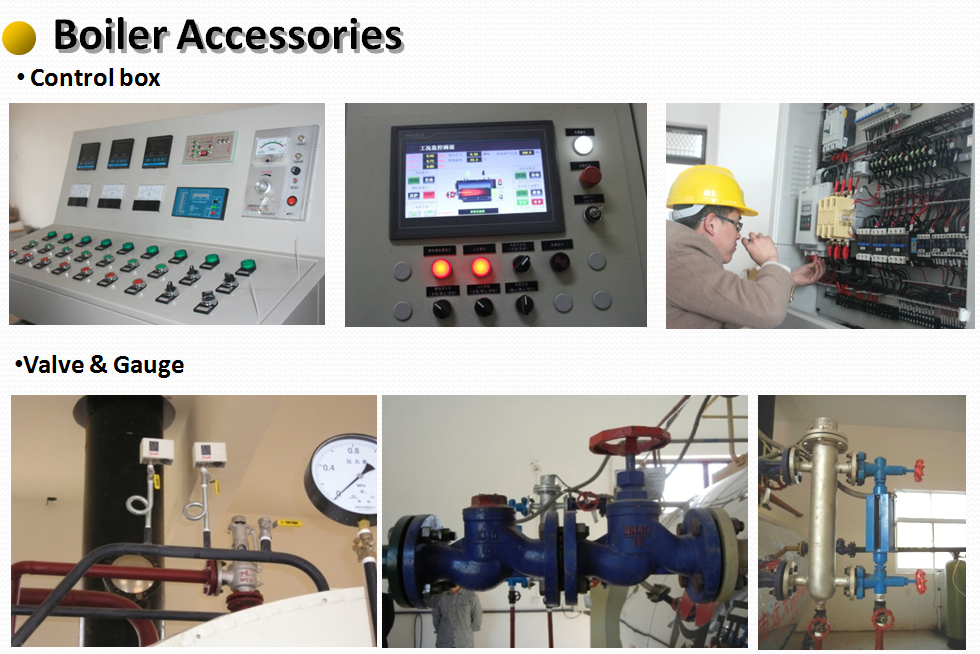

7. Electric control cabinet, can realize automatic management.
8. Wet scrubber, can effective processing waste gas and using the high temperature of flue gas again.
Which main auxiliaries included?
Automatic feeding system, induced druft fan, air blower , stainless steel feed water pump,steam manifold, slag extractor, economizer, wet scrubber, deaerator,water treatment machine, Electric control Cabinet, Valve instrument , Chimney,etc
